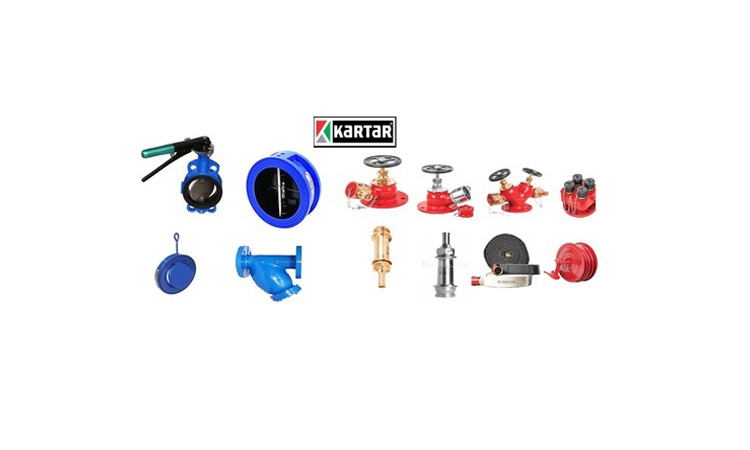

Kartar Valves

We are the Authorized Distributor of kartar valves.We distribute many types of valves some of them are listed below.

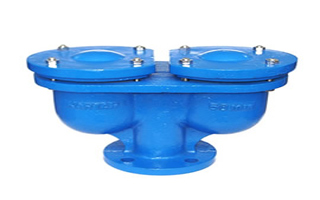

Air Valves

Product Code: K- 520 to K- 526

  • Features: Releases air during charging and admits air during emptying of water main lines,
    Available in double orifice and single orifice,
    Single orifice are available from 15mm to 50mm in screwed and flanged type,
    Double orifice are available from 40mm to 150mm in flanged type only.
  • Test Pressure (Hydraulic):
    Body : 1.5 MPa
    Seat : 1.0 MPa
    1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI

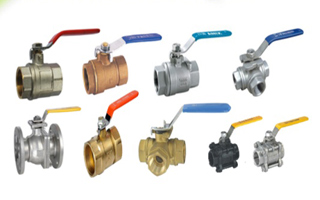

Ball Valves

Product Code: K- 804,K- 802,K- 801 & K- 609/610

  • Features: 15mm to 100mm in Flanged type 3pc design,
    1/2″ (15mm) to 4″ (100mm) in screwed type 2pc design,
    Can be installed upto 200 degrees centigrade temperature & 35 bar pressure,
    Blowout proof stem,
    Mounting flange for actuator as per ISO:5211 can also be provided.
  • Pressure Testings:
    Body : 22 Bar (Hydrostatically); 10 Bar (Air),
    Seat : 16 Bar (Hydrostatically); 7 Bar (Air),
    1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI.

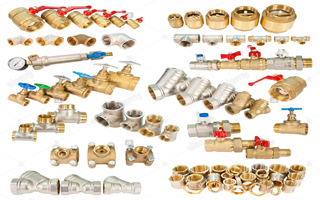

Bronze Plumbing Valves

Product Code: K- 601 to K- 612

  • Features: Screwed female Ends,
    Permits flow in one direction and closes automatically if the flow reverses,
    Available in metal seating and rubber O ring seating,
    Available with Open-Shut indicator and locking device also.
  • Pressure Testings:
    Body : 1.5 MPa,
    Seat : 1.0 MPa,
    1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI.

Butterfly Valves

Product Code: K- 701/ K- 702

  • Features: DN 50 to DN 600, PN 10 & PN 16,
    Temperature Range 34°C to 150°C,
    No part in contact with fluid except disc and liner,
    Neck flange according to ISO:5211,
    Design reference IS:13095 & BS:5155,
    100% leak tight design,
    Available in lever type and clutch type handles.
  • Suggested operation:
    For PN10 & PN16 : Upto 150mm Hand Lever,
    Over 150mm : Gear or Actuator,
    Product Size: 40mm to 450mm.

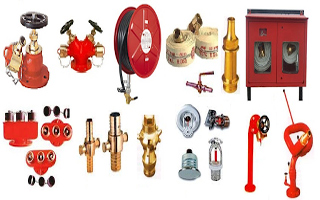

Fire Fighting Valves

Product Code: K- 901/ K- 918

  • Products Of Fire Fighting we distribute : Single Landing Valve,
    Double Landing Valve,
    Fire Hose Coupling,
    Branch Pipe with Nozzle,
    2 Way Water Inlet Connection,
    3 Way Water Inlet Connection,
    4 Way Water Inlet Connection,
    Spare Check Valve,
    Sprinklers,
    Flexidrop,
    Rubberised Fire Hose,
    Rubberised Fire Hose,
    TP Hose,
    Hose Reel Drum,
    Hose Box,
    Water Monitors,
    Air Release Valve,
    Sight Glass,
    Air Vents with Inbuilt Strainer,
    Shut Off Nozzle.

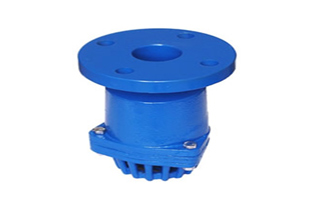

Foot Valves

Product Code: K- 518/ K- 519

  • Features: Permits flow in one direction and closes automatically if the flow reverses,
    Strictly conforming to IS : 4038,
    Available in rubber seating,
    Swing type Screwed 15mm to 150mm,
    Lift type Screwed & Flanged 25mm to 100mm,
    Valves above 150mm have two semi circular doors.
  • Test Pressure (Hydraulic):
    Body : 1.5 MPa,
    Seat : 1.0 MPa,
    1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI

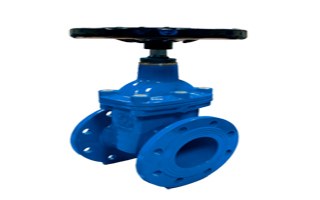

Resilient Seated Gate Valves

Product Code: K- 511

  • Features: Available in outside yoke type rising stem,
    Flanged ends,
    Handwheel, cap or gear operated,
    Available in PN10 & PN16,
    ISI Marked as per IS:14846,
    Available in CL125 as per BS:5163.
  • Working & Test Pressure :
    Sluice Valve PN 1.0 Sluice Valve PN 1.0 Gate Valve CI 150,
    Hydrostatic Test (Mpa) Body / Shell 1.5, 2.4, 3.0,
    Hydrostatic Test (Mpa) Seat 1.0, 1.6, 2.2,
    Pneumatic Test (Mpa) Seat NA, NA, 0.7,
    1 Bar = 0.1 Mpa = 1.019 Kg.cm2 = 14.50 PSI.

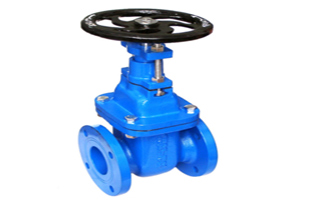

Gate Valves

Product Code: K- 501 to K- 504,
K- 509 to K- 510

  • Features: Handwheel, cap or gear operated,
    Available in PN10 & PN16,
    ISI Marked as per IS:14846,
    Available in CL125 as per BS:5163,
    Available in reselient seating as well as metal seating.
  • Working & Test Pressure:
    Sluice Valve PN 1.0 Sluice Valve PN 1.0 Gate Valve CI 150,
    Hydrostatic Test (Mpa) Body / Shell 1.5, 2.4, 3.0,
    Hydrostatic Test (Mpa) Seat 1.0, 1.6, 2.2,
    Pneumatic Test (Mpa) Seat NA, NA, 0.7,
    1 Bar = 0.1 Mpa = 1.019 Kg.cm2 = 14.50 PSI

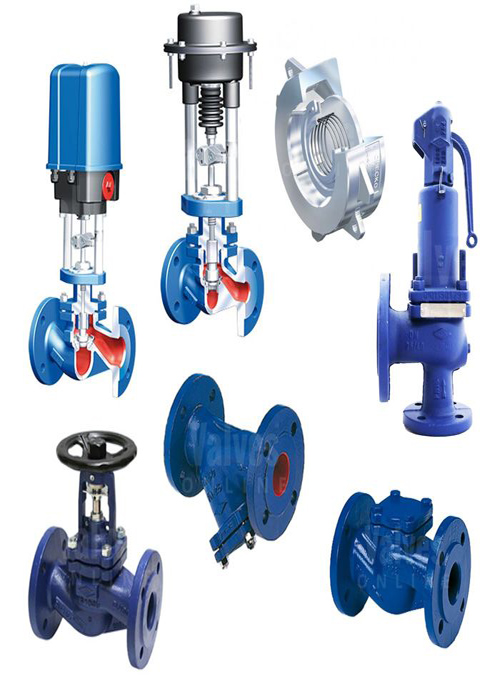

Steam Valves

Product Code: K- 101 to K- 110,
K- 201 to K- 206,
K- 301 to K- 319

  • Steam Valves we distribute: Cast Iron Globe Steam Stop Valve,
    Cast Iron Junction Steam Stop Valve, Right Angle Pattern,
    Cast Iron Horizontal Lift Check (Non Return) Valve,
    Cast Iron Lift Check (Non Return) Right Angle Valve,
    Cast Iron Y-Type Strainer with Stainless Steel Screen (Screwed),
    Cast Iron Y-Type Strainer with Stainless Steel Screen (Flanged),
    Cast Iron Moisture Separator – Horizontal Type,
    Cast Iron Stop cum Non Return Valve,
    Bronze Y-type Strainer,
    Bronze Vertical (Non Return) Valve (Screwed),
    Bronze Vertical (Non Return) Valve (Flanged),
    Bronze Thermodynamic Steam Trap,
    Bronze Spring loaded safety valve (Open Discharge),
    Bronze Spring loaded safety valve (Enclosed Discharge).
